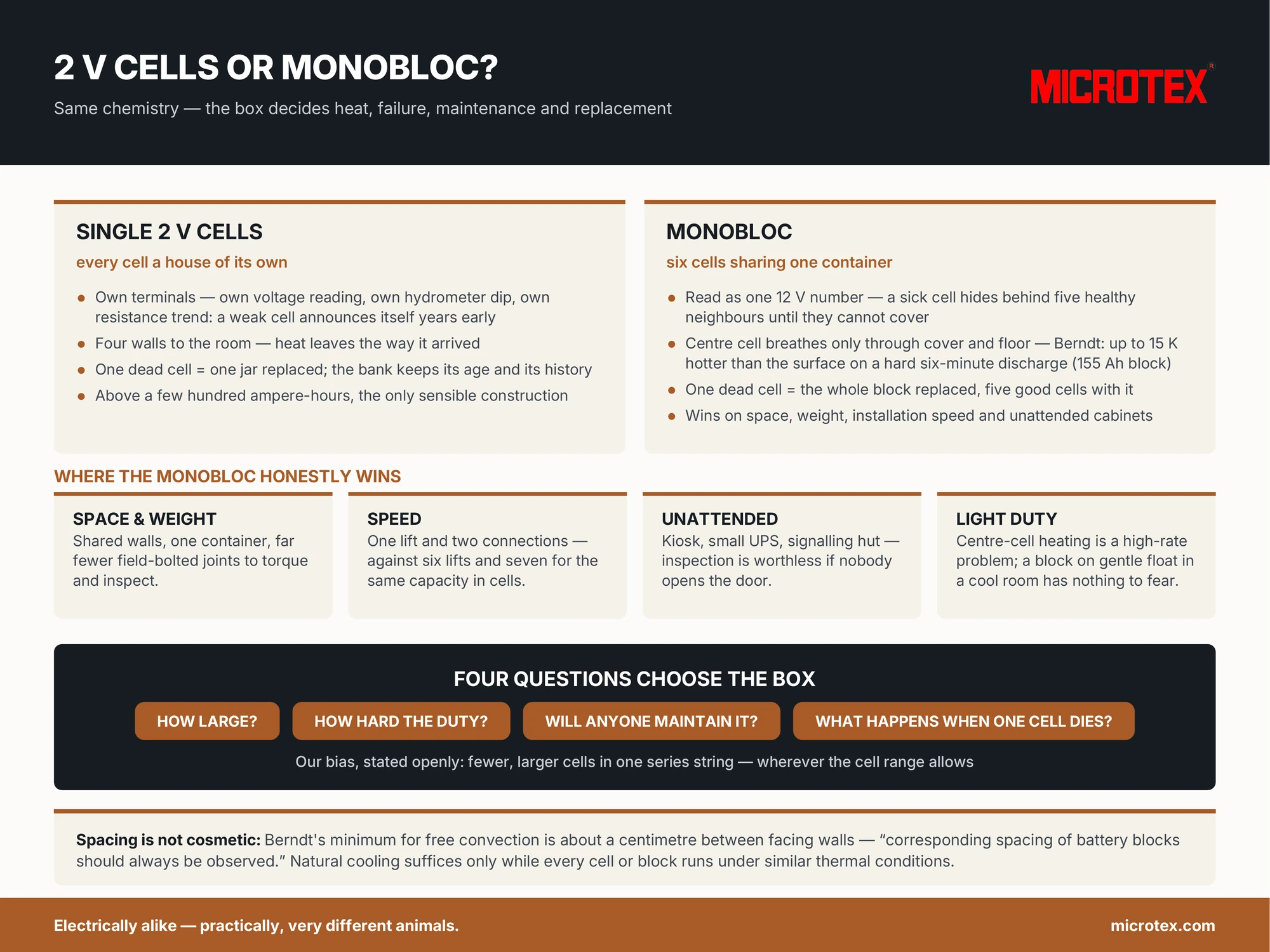

Every lead-acid battery in the world is a two-volt cell; the only real choice is how many you put in one box. A “12 V battery” is six cells sharing a container. A substation bank of fifty-odd two-volt jars is the same chemistry with every cell given a house of its own. Buyers searching for “2 V battery” are usually standing at exactly this fork without a signpost, because product catalogues sell the cells and sell the blocks but rarely explain why both exist. The answer is not that one is better. It is that the box decides four things — how the battery sheds heat, how it fails, how it is maintained and how it is replaced — and those four things weigh differently in a forklift, a telecom cabinet and a power station. This guide sets out the trade honestly, including where our own preference lies and why.
The vocabulary, and where the standards draw the line
Berndt’s chapter in the standard battery-technology handbook fixes the words: a single-cell battery is sometimes called a “monocell”, while “batteries formed by a number of cells within a common container are known as ‘monoblocs’, especially in the field of lead-acid batteries” — and, he notes, the IEC convention is that the word “cell” still applies to each compartment inside a monobloc. So a 12 V block contains six cells whether or not you can see them; the difference is that you cannot measure, water or replace them one at a time. The standards split along the same line: as our standards guide explains, IS 1651 governs stationary tubular cells, while IS 13369 governs stationary tubular batteries in monobloc containers, and the traction world runs on single two-volt cells assembled in steel trays. In the sealed family the same fork exists — Linden’s handbook records small VRLA units “available as single 2 V units or as multiple-cell” blocks, with 4, 6 and 12 V monoblocs performing much like the single cell electrically. Electrically alike; practically, very different animals.
Heat: the cell in the middle of the block
The first thing the box decides is temperature, and temperature decides life — our Arrhenius guide explains why every ten degrees roughly doubles the rate of the reactions that age a battery. A single cell has walls on four sides and sheds its heat to the room. A cell in the middle of a monobloc has neighbours on two sides at the same temperature as itself, and only the cover and the floor to breathe through. Berndt’s rough table puts it in numbers: the heat-exchange surface of a centre cell in a monobloc is about the same, per 100 Ah, as that of a large single cell — the block turns a medium cell into a big one thermally, without giving it a big cell’s mass to absorb the heat. Under gentle float duty this hardly matters; Berndt observes that natural cooling suffices “as long as all the cells or monoblocs operate under similar thermal conditions”. Under heavy discharge it matters a great deal: he reports temperature differences of up to 15 K between the centre and the surface of 155 Ah monoblocs during roughly six-minute high-rate discharges. Two consequences follow. The middle cells of a hard-worked block run hotter and age faster than their siblings, which is why blocks in cycling duty so often die of one cell. And spacing is not cosmetic: Berndt’s minimum for free convection is about a centimetre between facing walls, and “corresponding spacing of battery blocks should always be observed” — a rule our battery-room guide turns into shelf drawings.
Failure, maintenance and the replacement question
The second and third things the box decides are how the battery fails and how you find out. Our failure-analysis guide rests on one distinction — one sick cell versus a sick family — and single cells make that distinction visible: every cell has its own terminals, so every cell has its own voltage reading, its own hydrometer dip, its own resistance trend. A weak cell announces itself on the monthly round years before it takes the bank down. Inside a monobloc the six cells are read as one twelve-volt number; a cell can sulphate, dry out or short while the block’s terminal voltage still looks respectable, because its five neighbours are covering for it until, quite suddenly, they cannot. The fourth thing follows directly: replacement. When a single cell fails, you replace a single cell — one jar, a pair of connectors, an hour’s work, and the rest of the bank keeps its age and its history. When one cell inside a block fails, you replace the block — six cells, five of them healthy — and the new block then sits in a string of older ones, which our series and parallel guide explains is a mismatch the old cells will punish. This is why the largest, longest-lived stationary banks in the world — power stations, substations, the nuclear plants where failure is not a word — are built from single two-volt cells, and why our own bias, stated openly in that guide, is fewer, larger cells in one series string wherever the cell range allows.
Where the monobloc honestly wins
None of that makes the block a compromise; it makes it a tool for a different job. A monobloc wins on space and weight per installation — one container, shared walls, fewer intercell connectors bolted in the field, and far fewer joints to torque and inspect (each of which, as our terminal guide shows, is a place where resistance can quietly grow). It wins on installation speed: a 12 V block is one lift and two connections; the same capacity as six cells is six lifts and seven. It wins wherever the battery is small, sealed and unattended — a telecom kiosk, a small UPS, a signalling hut — because the cell-by-cell inspection advantage is worthless if nobody will ever open the door to inspect. And it wins on duty that is light: the centre-cell heating problem is a high-rate problem, and a block on gentle float in a cool room has nothing to fear from it. That is why the same factory that builds two-volt tubular cells for substations also builds 12 V monoblocs for railway coaches and light traction — different rooms, different duties, honest answers to each.
The decision in four questions
Ask four things and the box chooses itself. How large is the bank? Above a few hundred ampere-hours, single cells stop being an option and become the only sensible construction — a monobloc that size would be too heavy to lift and too hot in the middle. How hard is the duty? Deep daily cycling or high-rate discharge favours cells, for the heat reason; gentle float suits either. Will anyone maintain it? A trained crew with a hydrometer and a logbook gets the full value of single cells; an unmanned cabinet gets none of it, and the block’s simplicity wins. What happens when one cell dies? If the answer must be “we replace one cell and carry on for another decade”, buy cells. Our traction guide and OPzS pages show the two families in their natural habitats. And if your application sits awkwardly between them — a mid-sized solar bank, a signalling room without a resident electrician — send us the duty and the room; the right answer is sometimes cells, sometimes blocks, and occasionally the honest reply that either will do and the cheaper one should win.
Sources quoted: T. B. Reddy (ed.), Linden’s Handbook of Batteries, 4th ed. (McGraw-Hill, 2011); D. Berndt, “Electrochemical Energy Storage”, in H. A. Kiehne (ed.), Battery Technology Handbook, 2nd ed. (Marcel Dekker, 2003).
