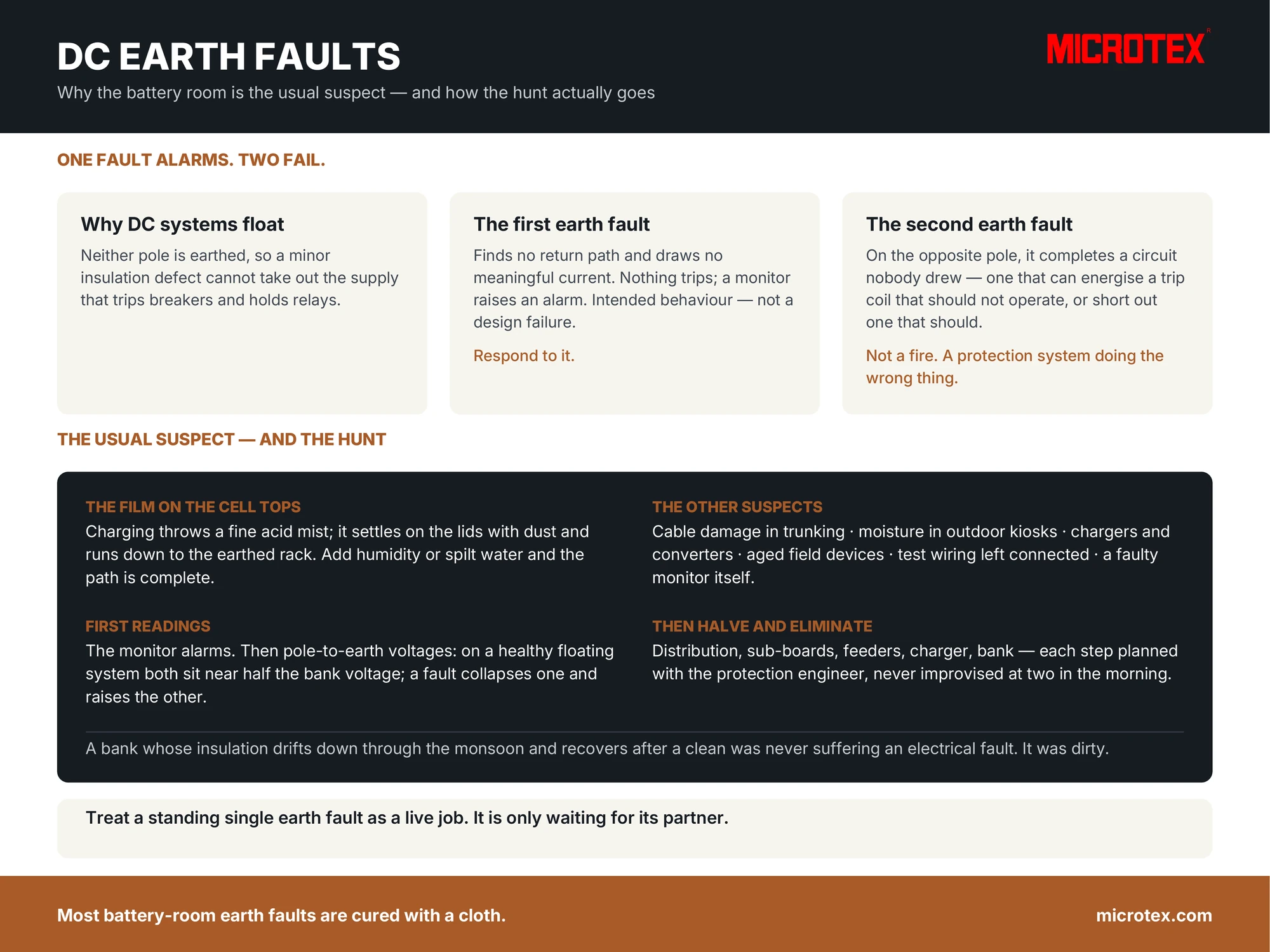

A substation’s DC system is deliberately not connected to earth, and that single design decision is why an earth fault on it is harmless and dangerous at the same time. Harmless, because with the system floating, one accidental connection to earth completes no circuit: nothing trips, the protection relays keep working, the plant carries on. Dangerous, because that is exactly what makes people live with it — the system is now one fault away from a real problem, and the second fault does not announce itself politely. If you operate battery banks in substations, power plants, signalling rooms or process-plant DC schemes, this is the fault report you will meet most often, and the battery room is the first place to look. Here is why, and how the hunt goes.
Why DC systems float
The reasoning is elegant. A DC system exists to make protection and control work when everything else has failed — to trip a breaker, hold a relay, wake a plant’s safety systems in an outage. The last thing you want is for that supply to be taken out by a minor insulation defect. So neither pole is earthed. A single contact between one pole and earth then finds no return path and draws no meaningful current: the system continues, and a monitoring device raises an alarm rather than a trip. That is intended behaviour, not a failure of design. The bargain is that you must actually respond to the alarm. With one pole effectively tied to earth by the fault, a second earth fault on the opposite pole anywhere in the scheme completes a circuit nobody drew — one that can energise a trip coil that should not operate, or short out one that should. That is the whole risk, stated without drama: not a fire, but a protection system doing the wrong thing on the day it is finally needed.
Why the battery room is the usual suspect
Because the battery room is the one place in the scheme where a conductive liquid, an earthed steel structure and hundreds of exposed live terminals share a small space. In a flooded bank, charging produces a fine acid mist along with the gas; that mist settles on the cell lids and takes airborne dust with it. What forms is a damp, faintly conductive film running from terminal to terminal across the tops of the cells and down onto the rack — which is earthed, as it should be. Add a humid season, a topping-up job done in a hurry with water spilt across the lids, or a cable lug resting where it should not, and the leakage path is complete. The signature is instructive: a bank whose insulation reading drifts down through the monsoon and recovers when somebody finally cleans the cell tops was never suffering an electrical fault at all. It was dirty. That is the least glamorous fact in DC engineering and one of the most useful — and it is why the maintenance walk-round puts clean, dry cell tops on the list beside the electrical checks.
The other suspects
The battery room is the first place to look, not the only one. Cable damage where a DC circuit passes through trunking or a gland plate is the classic second candidate. Moisture in outdoor marshalling boxes and kiosks is the third, and it has a season: faults that appear with the first rains and vanish in the dry months are telling you about a seal, not about a battery. Then the ones people forget — a charger or converter with a leaky filter component, a field device whose insulation has aged, temporary test wiring left connected after commissioning, and occasionally a faulty monitoring device reporting a fault that does not exist. Note that last possibility before spending a night chasing a ghost: prove the instrument as well as the system.
How the hunt actually goes
Modern schemes carry an insulation-monitoring device that watches the resistance from each pole to earth and alarms when it falls below a set value; that setting belongs to your utility’s standards and the device maker, not to us, and confirming it comes before interpreting anything. A quick manual check exists alongside it: measure the voltage from each pole to earth. On a healthy floating system with balanced leakage, both readings sit near half the bank voltage, with opposite polarity. When one pole is faulted to earth, its own reading collapses towards zero and the opposite pole’s climbs towards the full bank voltage — which tells you at once which pole is involved. Treat those readings as indicative rather than absolute: what a voltmeter shows depends on its own input impedance and on any reference resistors in the scheme, so two instruments can disagree honestly about the same healthy system.
Locating the fault is then a disciplined elimination — the halving method. Split the system into sections and remove one at a time, watching whether the indication clears: distribution circuits first, then sub-boards, then individual feeders, then the charger, then the bank. Each step is a decision about live protection equipment, which is why it is planned in advance with the protection engineer and never improvised at two in the morning; isolating the wrong feeder to find an earth fault is a far more expensive mistake than the earth fault. When the trail ends at the bank, disconnect it and measure it in isolation — and if the fault stays, clean the cell tops and measure again before concluding anything about the cells. That last step resolves a large share of battery-room earth faults with a cloth.
Prevention is housekeeping
Almost everything that prevents battery-room earth faults is unglamorous. Keep cell tops clean and dry, and clean them properly rather than smearing the film about. Top up with the discipline our guide to battery water sets out — never overfill, and wipe up what escapes. Keep ventilation working so mist is carried away instead of settling, one of the quieter arguments in our battery room design guide. Support cables so no lug rests against a rack, and seal the entries where they leave the room. Record insulation readings as a trend rather than a pass or fail, in the logbook rhythm the commissioning record starts — a reading that has halved over two years is telling you something long before it reaches an alarm value. And treat a standing single earth fault as a live job, not a background condition: the reason it has caused no trouble is that it is still waiting for its partner.
All of the above is general practice, offered to help you ask better questions; the personal-protection rules for any work in a battery room are in our battery safety guide and apply here in full. Your own utility standards, the scheme drawings and the equipment makers’ manuals govern in every case, and protection work is planned with the people responsible for it — verify before relying on any summary, this one included. If a battery room in your care is carrying an earth fault that keeps returning, describe the symptoms and the season to us. Whether it recovers when the weather changes is often the whole diagnosis.
