Inside every lithium battery pack lives a small computer with veto power over everything the battery does. It decides whether charging may begin, whether it must stop, whether the load gets power at all. It watches every cell many times a second, and if it dies or misjudges, the consequences range from a bricked pack to a fire. The trade calls it the BMS — the battery management system — and it is the least glamorous, most safety-critical part of the modern battery revolution. This guide explains what a BMS actually does, why lithium chemistry cannot live without one, how lead-acid strings managed for a century with a hydrometer and a logbook instead — and why even lead banks are now getting electronic eyes.
Why lithium packs cannot live without one

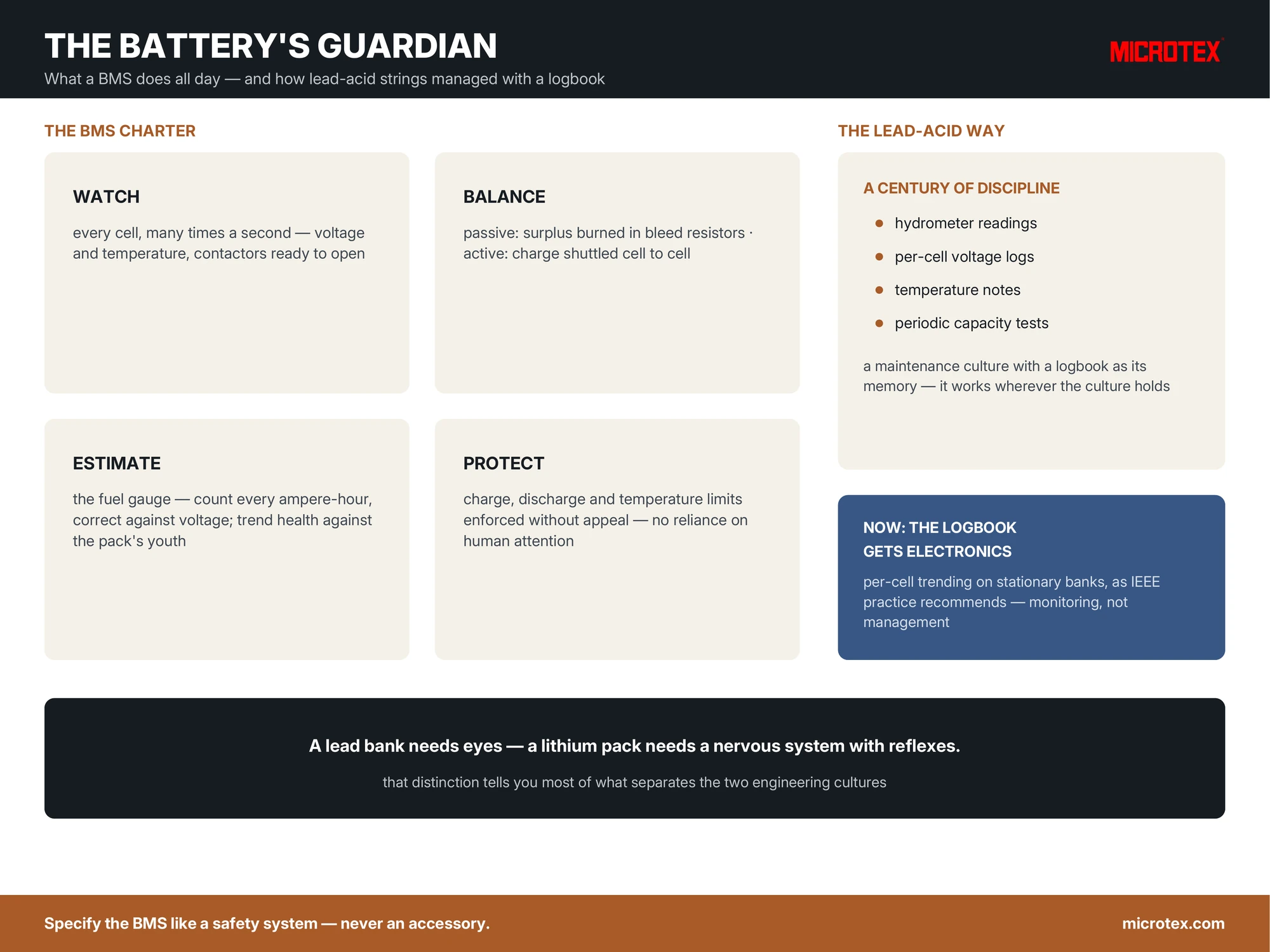

The reason is chemical, and it is worth stating plainly. A lithium-ion cell lives inside a narrow voltage window with no natural forgiveness at either end: push past full and there is no safe overflow — the cell begins plating metallic lithium and heating toward the runaway territory every engineer respects; pull too low and the cell damages itself just as permanently. Lead-acid, by contrast, carries a crude chemical relief valve: once a flooded cell reaches full charge, surplus current simply electrolyses water into gas — wasteful, but self-limiting, and the very mechanism an equalising charge exploits to level a string. Lithium has no such vent. Worse, cells in a series string never stay identical — tiny differences in capacity and self-discharge make them drift apart — and in lithium’s unforgiving window, the drift must be measured and corrected cell by cell, continuously, by electronics. That is the BMS’s charter: per-cell voltage and temperature measurement, contactors that open the moment any cell approaches a limit, and no reliance whatever on human attention.
The day job: balancing and bookkeeping
Between emergencies — which a good BMS spends its whole life preventing — the work is housekeeping. BALANCING keeps the string’s cells marching in step, and comes in two schools: passive balancing, where the fullest cells quietly burn their small surplus through bleed resistors until the laggards catch up — simple, cheap, universal, and mildly wasteful; and active balancing, where electronics shuttle charge from fuller cells to emptier ones — elegant and efficient, but more complex, and reserved for packs whose economics justify it. BOOKKEEPING is the estimation work: the fuel gauge. A BMS counts every ampere-hour in and out (coulomb counting) and corrects that running total against the cell’s voltage behaviour, because counting alone drifts — the same reason state of charge is one of battery engineering’s slipperier quantities in every chemistry. On top of it sits state-of-health estimation: comparing today’s delivered capacity and internal resistance against the pack’s youth, so the system can warn of ageing before the ageing becomes an outage. And around it all stand the protection limits — charge and discharge current, temperature windows — which the BMS enforces without appeal.
How lead-acid strings managed without one
For over a century, lead-acid banks ran the world’s telephone exchanges, substations and engine rooms with no electronics at all — and the honest explanation is that the chemistry is simply more forgiving. The overcharge relief valve described above doubles as a natural equaliser: a deliberate, controlled overcharge brings every cell in a flooded string to genuinely full, which is why the equalising charge — not a circuit board — was the string-balancing technology of the twentieth century. What replaced the BMS was DISCIPLINE: scheduled hydrometer readings, per-cell voltage logs, temperature notes, periodic capacity tests — a maintenance culture with a logbook as its memory. It worked, and still works, wherever the culture holds. And we will be honest about the failure mode: where the culture lapses, nobody is watching — which is why neglect, not chemistry, kills so many lead banks before their time, as our guide to how batteries actually die sets out.
Monitoring reaches the lead bank — and one honest caution
The logbook is now acquiring electronics of its own. Stationary lead banks — substation, UPS, telecom — increasingly wear battery MONITORING systems: per-cell voltage, temperature and internal-ohmic-value trending, the approach IEEE stationary-battery practice recommends, catching a corroding or drying cell months before it fails a duty call. Note the word: monitoring, not management. A lead bank needs eyes; a lithium pack needs a nervous system with reflexes — the distinction tells you most of what separates the chemistries’ engineering cultures. Which brings the honest caution this post owes you both ways. A BMS is safety-critical electronics asked to work unattended for as long as the battery lives — its sensors, firmware and contactors must stay correct for a decade in heat, dust and vibration, and a pack is only as trustworthy as this least-visible component; specify it like a safety system, never an accessory. And a battery you can audit with a hydrometer and a voltmeter has a kind of honesty of its own. If you are planning a stationary bank and want monitoring specified sensibly — neither naked nor gold-plated — ask us.
